We are acting as a trade company of producer of materials for cathodic protection against corrosion on sea and river vessels, offshore structures - production platforms, drilling rigs, offshore pipelines, etc.
Produced aluminium and zinc sacrificial anodes(protectors) meet all the international requirements concerning electro-chemical anodes characteristics.
The sacrificial anode cathodic protection efficiency is determined first of all by the anode material quality and mounting quality.
We are pleased to quote aluminium and zinc sacrificial anodes for cathodic protection against corrosion on ships,offshore structures - production platforms, drilling rigs, offshore pipelines, etc.
I.Materials for sacrificial anodes(protectors) production
The anodes are produced by casting from alluminium alloys
(Al-Zn-In)
or from zinc alloys
(Zn-Al-In)

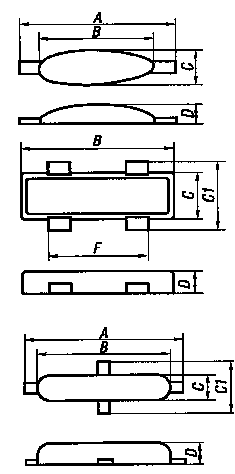

II.Shapes and dimentions of sacrificial anodes(protectors)
Type | A [mm] | B [mm] | C [mm] | C1 [mm] | D [mm] | F [mm] | Armature [mm] | Net [kg] | Gross [kg] |
ZINC ANODES ( PROTECTORS ) |
1 | 260 | 180 | 60 | - | 32 | - | 20x3 | 1.0 | 1.1 |
2 | 380 | 290 | 100 | - | 50 | - | 30x5 | 4.55 | 5.0 |
3 | 380 | 280 | 150 | - | 75 | - | 40x6 | 10.0 | 10.7 |
4 | - | 500 | 80 | 150 | 40 | 280 | 25x5 | 10.0 | 10.7 |
5 | 520 | 420 | 160 | - | 70 | - | 40x6 | 15.0 | 16.0 |
6 | 650 | 550 | 130 | 228 | 60 | - | 50x6 | 30 | 31 |
Type | A [mm] | B [mm] | C [mm] | C1 [mm] | D [mm] | | Armature [mm] | Net [kg] | Gross [kg] |
ALUMINIUM ANODES ( PROTECTORS ) |
1 | 300 | 200 | 95 | - | 30 | 20x3 | 1.2 | 1.3 |
2 | 350 | 270 | 150 | - | 30 | 40x6 | 2.6 | 3.2 |
3 | 500 | 400 | 150 | - | 30 | 40x6 | 4.0 | 5.0 |
4 | 650 | 550 | 130 | - | 50 | 40x6 | 8.0 | 9.2 |
5 | 650 | 550 | 130 | - | 60 | 50x6 | 10.1 | 11.6 |
6 | 650 | 550 | 130 | - | 70 | 50x6 | 12.5 | 14.1 |
7 | 650 | 550 | 130 | 228 | 150 | 50x6 | 16.5 | 18.0 |
